CEE 7/3 (16 A)

Alignment 0 °/ 60° / 90°

(without) contact protected

Colours: black, red, white, light grey

Colour: black
Frame-Colour: Alanox laquered

CEE 7/3 (16 A)

Alignment 0°

Contact protected

Colour: black
Frame-Colour: Alanox laquered

CEE 7/3 (16 A)

Alignment 60°

Contact protected

Colours: black, red, white, light grey

CEE 7/3 (16 A)

Alignment 90°

Contact protected

Colours: black, red

BS 1363 (13 A)

Alignment 0° / 45° / 90° / 225°

Contact protected

without fuse

Colours: black, white

BS 1363 (3,15 A, 5A)

Alignment 0° / 45° / 90° / 225°

Contact protected

with integrated fuse

Colours: black, white

BS 1363 (13A)

Alignment 45°

Contact protected

without fuse

Colours: black, white

BS 1363

Alignment 45°

Contact protected

with integrated fuse

Colours: black; 3,15 A, 5A ;  white: 3,15 A, 5A

BS 1363 (13A)

Alignment 90°

Contact protected

without fuse

Colours: black

BS 1363

Alignment 90°

Contact protected

with integrated fuse

Colours: black; 3,15 A, 5A

BS 1363 (13A)

Alignment 225°

Contact protected

without fuse

Colours: black

BS 1363

Alignment 225°

Contact protected

with integrated fuse

Colours: black; 3,15 A, 5A ;  white: 3,15 A, 5A

CEE 7/5 (16 A)

Alignment 0°

Contact protected

Colours: black, white

CEE 7/5 (16 A)

Alignment 60°

Contact protected

Colours: black, white

SEV 1011 (10 A)

Alignment 0° / 60°

Contact protected /without contact protection

Colours: black, red

SEV 1011 (16 A)

Alignment 0° / 60°

without contact protection

Colours: black, red

SEV 1011 (10 A)

Alignment 60°

without contact protection

Colours: black, red

SEV 1011 (16 A)

Alignment 60°

without contact protection

Colours: black, red

DS 608842 (13 A)

Alignment 0° / 60° / 240°

Contact protected

Colours: black


DS 608842 (13 A)

Alignment 60°

Contact protected /without contact protection

Colours: black


DS 608842 (13 A)

Alignment 240°

Contact protected

Colours: black


CEI 23-16-VII (10 A)

Contact protected

Colours: black

AS 3112 (10 A)

Alignment 0° / 270°

without contact protection

Colours: black

AS 3112 (10 A)

Alignment 270°

without contact protection

Colours: black

AS 3112 (10 A)

Angled Outlet

Alignment 0°

without contact protection

Colours: black

NEMA 5-15 (15 A)

Alignment 0° / 60°

with/without contact protection

Colours: black

NEMA 5-15 (15 A)

Alignment 60°

Contact protected

Colours: black

NEMA 5-15 (15 A)

Alignment 0°

Contact protected and hinged cover

Colours: black

Not suitable for right-angle plugs

USB Type A and Type C

Charging output:
5,0 V / 2,1 A;
max 10,5 W

Suitable for power supply/
charging only.

Supply voltage:
100-240 VAC

USB Type A and Type C

Charging output:
5,0 V / 3,0 A; 9,0 V / 2,0 A; max. 18,0 W

Suitable for power supply/charging only.

Supply voltage:
100-240 VAC

Installation dimensions: 25 x 50 mm

USB socket
2× Type C

Charging output:
5.0 V / 3.0 A; 9.0 V / 2.0 A;
max. 18,0 W

Suitable for power supply/charging only.

Input voltage:
100–240 VAC

Installation dimensions:
25 × 50 mm

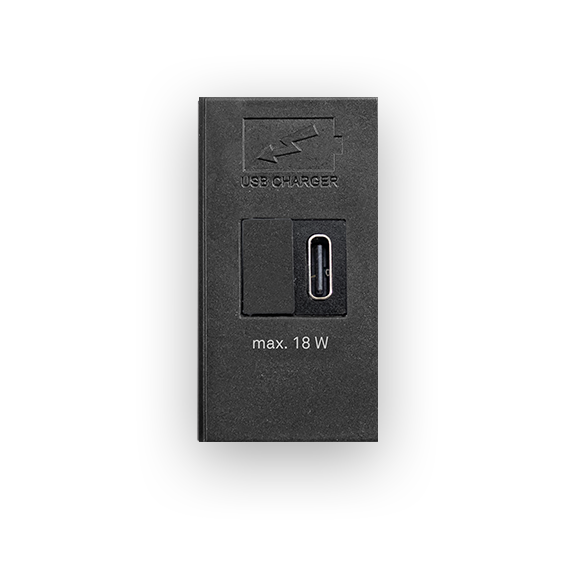

USB socket
Type C

Charging output:
5.0 V / 3.0 A; 9.0 V / 2.0 A;
max. 18,0 W

Suitable for power supply/charging only.

Input voltage:
100–240 VAC

Mounting dimensions:
25 × 50 mm

USB socket
Type C

Suitable for power supply/charging only.

Battery can be replaced at any time using a special tool.

USB-C PD
(Power Delivery) port:
5.0 V / 3.0 A (15.0 W);
9.0 V / 3.0 A (27.0 W);
12.0 V / 2.25 A (27.0 W);
15.0 V / 1.8 A (27.0 W)
max. 27,0 W


Supported charging protocols:
USB-C PD, QC4;
USB-C PD PPS

Overcharge, deep discharge, overload and short-circuit protection

Mounting dimensions:
40 × 50 mm

learn more >

USB socket
Type C

Suitable for power supply/charging only.

Battery can be replaced at any time using a special tool.

USB-C PD (Power Delivery) port:
5.0 V / 3.0 A (15.0 W);
9.0 V / 3.0 A (27.0 W);
12.0 V / 3.0 A (36.0 W);
15.0 V / 3.0 A (45.0 W);
20.0 V / 3.0 A (60.0 W)
max. 65,0 W

Supported charging protocols:
USB-C PD, QC4; USB-C PD PPS

Overcharge, deep discharge, overload and short-circuit protection

Mounting dimensions:
75 × 50 mm

learn more >

_{Front
(Uplink port):}

1x USB-C: USB 3.2 Gen 1 (5 Gbps),
backward cornpatible with USB 2.0
Output: max. 85 W

1x LED: Power indicator

_{Rear
(Downlink ports):}

3x USB-A: USB 3.0 (5 Gbps), backward
compatiblE3 with USB specification
Revision 2.0, 1.1 and 1.0 Battery Charging
specification rev.1.2

1x NETWORK: Gigabit Ethernet:
10/100/1000 Mbps

1x DISPLAY HDMI: 4096x2160@60 Hz

1x POWER IN:
USB-C PD:
Input: USB Power Delivery 3.0, 100 W

learn more >
